查看布局分层内容在覆盖或背景中定义视图以使其布局适应主要内容。

分层内容的设计通常会指定某些内容保持在其他内容的边界内，或在该内容周围保持特定的边距。您可以使用叠加层和背景修饰符来定义视图之间的这些关系。例如，如果您的设计包含一个图形，该图形在某些文本后面提供对比，您可以定义一个布局，使图形随着文本的更新而调整其大小和位置。您可以通过将文本定义在另一个视图的背景或叠加层中，使文本换行以适应该视图的宽度。

要试验代码，请下载项目文件并在 Xcode 中打开示例。

第 1 部分

定义覆盖在 z 轴上排列内容时，可以使用 ZStack 或叠加层或背景修饰符，例如 overlay(alignment: content:) 或 background(_: in: fill Style:) 。 ZStack 根据可用空间调整每个视图的大小，而不考虑堆栈中的其他视图。要指定某些内容的大小取决于其他内容的大小，请在叠加层或背景修饰符中定义此辅助内容。

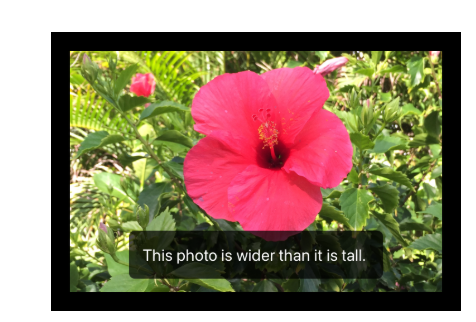

此示例展示了一张照片，照片下方覆盖着一段文字。为了提高文本的可读性，同时又不完全遮挡照片的下半部分，文本后方采用了近乎透明的背景。文本会换行以适应照片的宽度。文本的背景大小会根据文本的大小进行调整。Captioned Captioned Photo 视图会排列图片，并将文本显示在图片 overlay(alignment: content:) 中的 Caption 视图中。

步骤 1

Captioned Photo 是一个自定义 View ，它定义照片的布局，另一个自定义 Caption 视图则定义出现在图像顶部的标题文本的布局。

import SwiftUI


struct CaptionedPhoto: View {
    let assetName: String
    let captionText: String
    var body: some View {
        Image(assetName)
            .resizable()
            .scaledToFit()
            .overlay(alignment: .bottom) {
                Caption(text: captionText)
            }
            .clipShape(RoundedRectangle(cornerRadius: 10.0, style: .continuous))
            .padding()
    }
}


struct Caption: View {
    let text: String
    var body: some View {
        Text(text)
            .padding()
            .background(Color("TextContrast").opacity(0.75),
                        in: RoundedRectangle(cornerRadius: 10.0, style: .continuous))
            .padding()
    }
}


struct CaptionedPhoto_Previews: PreviewProvider {
    static let landscapeName = "Landscape.jpeg"
    static let landscapeCaption = "This photo is wider than it is tall."
    static let portraitName = "Portrait.jpeg"
    static let portraitCaption = "This photo is taller than it is wide."
    static var previews: some View {
        CaptionedPhoto(assetName: portraitName,
                       captionText: portraitCaption)
        CaptionedPhoto(assetName: landscapeName,
                       captionText: landscapeCaption)
        .preferredColorScheme(.dark)
        CaptionedPhoto(assetName: landscapeName,
                       captionText: landscapeCaption)
        .preferredColorScheme(.light)
    }
}

第 2 步

此视图定义了 asset Name 属性来保存图像资产的名称。

import SwiftUI


struct CaptionedPhoto: View {
    let assetName: String
    let captionText: String
    var body: some View {
        Image(assetName)
            .resizable()
            .scaledToFit()
            .overlay(alignment: .bottom) {
                Caption(text: captionText)
            }
            .clipShape(RoundedRectangle(cornerRadius: 10.0, style: .continuous))
            .padding()
    }
}


struct Caption: View {
    let text: String
    var body: some View {
        Text(text)
            .padding()
            .background(Color("TextContrast").opacity(0.75),
                        in: RoundedRectangle(cornerRadius: 10.0, style: .continuous))
            .padding()
    }
}


struct CaptionedPhoto_Previews: PreviewProvider {
    static let landscapeName = "Landscape.jpeg"
    static let landscapeCaption = "This photo is wider than it is tall."
    static let portraitName = "Portrait.jpeg"
    static let portraitCaption = "This photo is taller than it is wide."
    static var previews: some View {
        CaptionedPhoto(assetName: portraitName,
                       captionText: portraitCaption)
        CaptionedPhoto(assetName: landscapeName,
                       captionText: landscapeCaption)
        .preferredColorScheme(.dark)
        CaptionedPhoto(assetName: landscapeName,
                       captionText: landscapeCaption)
        .preferredColorScheme(.light)
    }
}

步骤4

此 Image 视图初始化程序从您的应用中按名称检索照片或图形并显示它。

import SwiftUI


struct CaptionedPhoto: View {
    let assetName: String
    let captionText: String
    var body: some View {
        Image(assetName)
            .resizable()
            .scaledToFit()
            .overlay(alignment: .bottom) {
                Caption(text: captionText)
            }
            .clipShape(RoundedRectangle(cornerRadius: 10.0, style: .continuous))
            .padding()
    }
}


struct Caption: View {
    let text: String
    var body: some View {
        Text(text)
            .padding()
            .background(Color("TextContrast").opacity(0.75),
                        in: RoundedRectangle(cornerRadius: 10.0, style: .continuous))
            .padding()
    }
}


struct CaptionedPhoto_Previews: PreviewProvider {
    static let landscapeName = "Landscape.jpeg"
    static let landscapeCaption = "This photo is wider than it is tall."
    static let portraitName = "Portrait.jpeg"
    static let portraitCaption = "This photo is taller than it is wide."
    static var previews: some View {
        CaptionedPhoto(assetName: portraitName,
                       captionText: portraitCaption)
        CaptionedPhoto(assetName: landscapeName,
                       captionText: landscapeCaption)
        .preferredColorScheme(.dark)
        CaptionedPhoto(assetName: landscapeName,
                       captionText: landscapeCaption)
        .preferredColorScheme(.light)
    }
}

步骤6

Caption 自定义视图定义文本及其背景。

import SwiftUI


struct CaptionedPhoto: View {
    let assetName: String
    let captionText: String
    var body: some View {
        Image(assetName)
            .resizable()
            .scaledToFit()
            .overlay(alignment: .bottom) {
                Caption(text: captionText)
            }
            .clipShape(RoundedRectangle(cornerRadius: 10.0, style: .continuous))
            .padding()
    }
}


struct Caption: View {
    let text: String
    var body: some View {
        Text(text)
            .padding()
            .background(Color("TextContrast").opacity(0.75),
                        in: RoundedRectangle(cornerRadius: 10.0, style: .continuous))
            .padding()
    }
}


struct CaptionedPhoto_Previews: PreviewProvider {
    static let landscapeName = "Landscape.jpeg"
    static let landscapeCaption = "This photo is wider than it is tall."
    static let portraitName = "Portrait.jpeg"
    static let portraitCaption = "This photo is taller than it is wide."
    static var previews: some View {
        CaptionedPhoto(assetName: portraitName,
                       captionText: portraitCaption)
        CaptionedPhoto(assetName: landscapeName,
                       captionText: landscapeCaption)
        .preferredColorScheme(.dark)
        CaptionedPhoto(assetName: landscapeName,
                       captionText: landscapeCaption)
        .preferredColorScheme(.light)
    }
}

步骤7

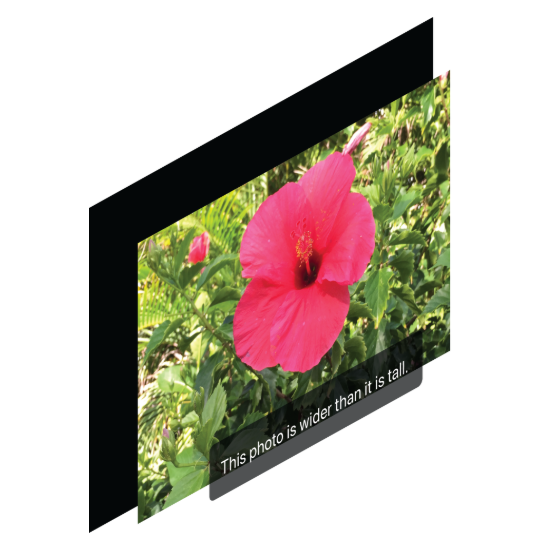

在 overlay(alignment: content:) 中定义标题，表明该标题位于图片前方。主视图的大小限制了用于修改主视图 overlay(alignment: content:) 的大小。

指定 bottom 对齐会将 overlay(alignment: content:) 修饰符的内容推到主视图的底部中心。

笔记覆盖层可以小于它所修改的视图。

步骤8

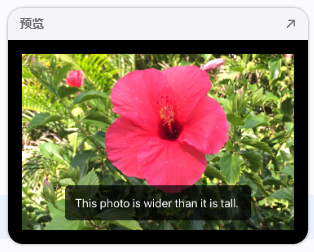

将视图剪裁为 Rounded Rectangle 会使图像的角变圆，而不会改变其大小或位置。

实验将 corner Radius 值更改为更大的数字，以查看其对照片角落的影响。

import SwiftUI


struct CaptionedPhoto: View {
    let assetName: String
    let captionText: String
    var body: some View {
        Image(assetName)
            .resizable()
            .scaledToFit()
            .overlay(alignment: .bottom) {
                Caption(text: captionText)
            }
            .clipShape(RoundedRectangle(cornerRadius: 10.0, style: .continuous))
            .padding()
    }
}


struct Caption: View {
    let text: String
    var body: some View {
        Text(text)
            .padding()
            .background(Color("TextContrast").opacity(0.75),
                        in: RoundedRectangle(cornerRadius: 10.0, style: .continuous))
            .padding()
    }
}


struct CaptionedPhoto_Previews: PreviewProvider {
    static let landscapeName = "Landscape.jpeg"
    static let landscapeCaption = "This photo is wider than it is tall."
    static let portraitName = "Portrait.jpeg"
    static let portraitCaption = "This photo is taller than it is wide."
    static var previews: some View {
        CaptionedPhoto(assetName: portraitName,
                       captionText: portraitCaption)
        CaptionedPhoto(assetName: landscapeName,
                       captionText: landscapeCaption)
        .preferredColorScheme(.dark)
        CaptionedPhoto(assetName: landscapeName,
                       captionText: landscapeCaption)
        .preferredColorScheme(.light)
    }
}

步骤9

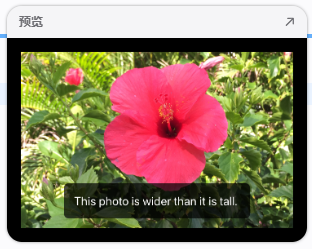

此 padding(_: _😃 在照片的所有四个边缘及其包含视图之间留出一些空间。

实验删除 padding(_: _😃 修饰符，看看布局有何变化。padding 修饰符在 Caption 视图中也出现了两次。也删除这两个修饰符，看看它们的缺失对布局有何影响。

import SwiftUI


struct CaptionedPhoto: View {
    let assetName: String
    let captionText: String
    var body: some View {
        Image(assetName)
            .resizable()
            .scaledToFit()
            .overlay(alignment: .bottom) {
                Caption(text: captionText)
            }
            .clipShape(RoundedRectangle(cornerRadius: 10.0, style: .continuous))
            .padding()
    }
}


struct Caption: View {
    let text: String
    var body: some View {
        Text(text)
            .padding()
            .background(Color("TextContrast").opacity(0.75),
                        in: RoundedRectangle(cornerRadius: 10.0, style: .continuous))
            .padding()
    }
}


struct CaptionedPhoto_Previews: PreviewProvider {
    static let landscapeName = "Landscape.jpeg"
    static let landscapeCaption = "This photo is wider than it is tall."
    static let portraitName = "Portrait.jpeg"
    static let portraitCaption = "This photo is taller than it is wide."
    static var previews: some View {
        CaptionedPhoto(assetName: portraitName,
                       captionText: portraitCaption)
        CaptionedPhoto(assetName: landscapeName,
                       captionText: landscapeCaption)
        .preferredColorScheme(.dark)
        CaptionedPhoto(assetName: landscapeName,
                       captionText: landscapeCaption)
        .preferredColorScheme(.light)
    }
}

第 2 节

定义背景 Captioned Photo 上的 overlay(alignment: content:) 包含一个用于显示标题文本的 Caption 视图。

Caption 视图使用 background(_: in: fill Style:) 修饰符在文本后面放置一个形状，该形状部分遮挡其后面的任何内容（在此示例中为照片），以便为文本提供更高的对比度。

步骤 1

这个 padding(_: _😃 修饰符在单词和下方对比背景的边缘之间添加了空间。代码的结构与视图的视觉外观相匹配——填充位于文本和背景之间。

重要的谨慎选择如何将填充与叠加层或背景修饰符组合使用。如果您在使用叠加层或背景修饰符修改主视图之前先填充主视图，系统会使用填充的主视图的大小来计算次要视图的位置。在叠加层或背景之后应用填充，以便在包含两个图层的视图周围留出一些空间。

import SwiftUI


struct CaptionedPhoto: View {
    let assetName: String
    let captionText: String
    var body: some View {
        Image(assetName)
            .resizable()
            .scaledToFit()
            .overlay(alignment: .bottom) {
                Caption(text: captionText)
            }
            .clipShape(RoundedRectangle(cornerRadius: 10.0, style: .continuous))
            .padding()
    }
}


struct Caption: View {
    let text: String
    var body: some View {
        Text(text)
            .padding()
            .background(Color("TextContrast").opacity(0.75),
                        in: RoundedRectangle(cornerRadius: 10.0, style: .continuous))
            .padding()
    }
}


struct CaptionedPhoto_Previews: PreviewProvider {
    static let landscapeName = "Landscape.jpeg"
    static let landscapeCaption = "This photo is wider than it is tall."
    static let portraitName = "Portrait.jpeg"
    static let portraitCaption = "This photo is taller than it is wide."
    static var previews: some View {
        CaptionedPhoto(assetName: portraitName,
                       captionText: portraitCaption)
        CaptionedPhoto(assetName: landscapeName,
                       captionText: landscapeCaption)
        .preferredColorScheme(.dark)
        CaptionedPhoto(assetName: landscapeName,
                       captionText: landscapeCaption)
        .preferredColorScheme(.light)
    }
}

第 2 步

类似 background(_: in: fill Style:) 背景修饰符与叠加修饰符类似，其内容的大小取决于其所修饰视图的大小。然而，背景修饰符将其内容置于所修饰视图的后方，而不是前方。

import SwiftUI


struct CaptionedPhoto: View {
    let assetName: String
    let captionText: String
    var body: some View {
        Image(assetName)
            .resizable()
            .scaledToFit()
            .overlay(alignment: .bottom) {
                Caption(text: captionText)
            }
            .clipShape(RoundedRectangle(cornerRadius: 10.0, style: .continuous))
            .padding()
    }
}


struct Caption: View {
    let text: String
    var body: some View {
        Text(text)
            .padding()
            .background(Color("TextContrast").opacity(0.75),
                        in: RoundedRectangle(cornerRadius: 10.0, style: .continuous))
            .padding()
    }
}


struct CaptionedPhoto_Previews: PreviewProvider {
    static let landscapeName = "Landscape.jpeg"
    static let landscapeCaption = "This photo is wider than it is tall."
    static let portraitName = "Portrait.jpeg"
    static let portraitCaption = "This photo is taller than it is wide."
    static var previews: some View {
        CaptionedPhoto(assetName: portraitName,
                       captionText: portraitCaption)
        CaptionedPhoto(assetName: landscapeName,
                       captionText: landscapeCaption)
        .preferredColorScheme(.dark)
        CaptionedPhoto(assetName: landscapeName,
                       captionText: landscapeCaption)
        .preferredColorScheme(.light)
    }
}

步骤3

为了无论人们是否使用黑暗模式都能提供高对比度，此 background(_: in: fillstyle:) 修饰符使用具有部分不透明度的自定义颜色。

该项目资产目录中设置的 Text Contrast 颜色为明暗外观定义了单独的颜色值。

import SwiftUI


struct CaptionedPhoto: View {
    let assetName: String
    let captionText: String
    var body: some View {
        Image(assetName)
            .resizable()
            .scaledToFit()
            .overlay(alignment: .bottom) {
                Caption(text: captionText)
            }
            .clipShape(RoundedRectangle(cornerRadius: 10.0, style: .continuous))
            .padding()
    }
}


struct Caption: View {
    let text: String
    var body: some View {
        Text(text)
            .padding()
            .background(Color("TextContrast").opacity(0.75),
                        in: RoundedRectangle(cornerRadius: 10.0, style: .continuous))
            .padding()
    }
}


struct CaptionedPhoto_Previews: PreviewProvider {
    static let landscapeName = "Landscape.jpeg"
    static let landscapeCaption = "This photo is wider than it is tall."
    static let portraitName = "Portrait.jpeg"
    static let portraitCaption = "This photo is taller than it is wide."
    static var previews: some View {
        CaptionedPhoto(assetName: portraitName,
                       captionText: portraitCaption)
        CaptionedPhoto(assetName: landscapeName,
                       captionText: landscapeCaption)
        .preferredColorScheme(.dark)
        CaptionedPhoto(assetName: landscapeName,
                       captionText: landscapeCaption)
        .preferredColorScheme(.light)
    }
}

步骤4

Rounded Rectangle ，作为一种 Shape ，接受其包含的视图所建议的任何尺寸。

在这种情况下， background(_: in: fillstyle:) 修饰符会创建包含视图，并且任何背景修饰符都会根据其修饰的视图确定其大小。这将生成一个 Rounded Rectangle ，其大小与 Text 视图周围的 padding 大小相同。

import SwiftUI


struct CaptionedPhoto: View {
    let assetName: String
    let captionText: String
    var body: some View {
        Image(assetName)
            .resizable()
            .scaledToFit()
            .overlay(alignment: .bottom) {
                Caption(text: captionText)
            }
            .clipShape(RoundedRectangle(cornerRadius: 10.0, style: .continuous))
            .padding()
    }
}


struct Caption: View {
    let text: String
    var body: some View {
        Text(text)
            .padding()
            .background(Color("TextContrast").opacity(0.75),
                        in: RoundedRectangle(cornerRadius: 10.0, style: .continuous))
            .padding()
    }
}


struct CaptionedPhoto_Previews: PreviewProvider {
    static let landscapeName = "Landscape.jpeg"
    static let landscapeCaption = "This photo is wider than it is tall."
    static let portraitName = "Portrait.jpeg"
    static let portraitCaption = "This photo is taller than it is wide."
    static var previews: some View {
        CaptionedPhoto(assetName: portraitName,
                       captionText: portraitCaption)
        CaptionedPhoto(assetName: landscapeName,
                       captionText: landscapeCaption)
        .preferredColorScheme(.dark)
        CaptionedPhoto(assetName: landscapeName,
                       captionText: landscapeCaption)
        .preferredColorScheme(.light)
    }
}

步骤5

背景周围的额外 padding(_: _😃 Caption 视图外部和其内部容器之间添加了空间；在本例中， Captioned Photo 是包含视图。

mport SwiftUI


struct CaptionedPhoto: View {
    let assetName: String
    let captionText: String
    var body: some View {
        Image(assetName)
            .resizable()
            .scaledToFit()
            .overlay(alignment: .bottom) {
                Caption(text: captionText)
            }
            .clipShape(RoundedRectangle(cornerRadius: 10.0, style: .continuous))
            .padding()
    }
}


struct Caption: View {
    let text: String
    var body: some View {
        Text(text)
            .padding()
            .background(Color("TextContrast").opacity(0.75),
                        in: RoundedRectangle(cornerRadius: 10.0, style: .continuous))
            .padding()
    }
}


struct CaptionedPhoto_Previews: PreviewProvider {
    static let landscapeName = "Landscape.jpeg"
    static let landscapeCaption = "This photo is wider than it is tall."
    static let portraitName = "Portrait.jpeg"
    static let portraitCaption = "This photo is taller than it is wide."
    static var previews: some View {
        CaptionedPhoto(assetName: portraitName,
                       captionText: portraitCaption)
        CaptionedPhoto(assetName: landscapeName,
                       captionText: landscapeCaption)
        .preferredColorScheme(.dark)
        CaptionedPhoto(assetName: landscapeName,
                       captionText: landscapeCaption)
        .preferredColorScheme(.light)
    }
}

第 1 部分 ​

步骤 1 ​

第 2 步 ​

步骤4 ​

步骤6 ​

步骤7 ​

步骤8 ​

步骤9 ​

第 2 节 ​

步骤 1 ​

第 2 步 ​

步骤3 ​

步骤4 ​

步骤5 ​

第 1 部分

步骤 1

第 2 步

步骤4

步骤6

步骤7

步骤8

步骤9

第 2 节

步骤 1

第 2 步

步骤3

步骤4

步骤5
